ASD SR 0302 02.48 Bridge Deck

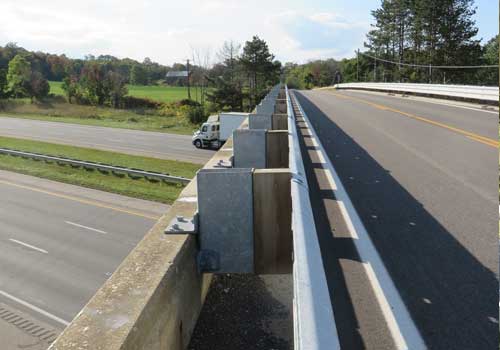

KS Associates led the design of a deck replacement that widened the structure that carries State Route 302 over Interstate Route 71 in Ashland County. State Route 302 is a major collector carrying two lanes of traffic with substandard shoulders.

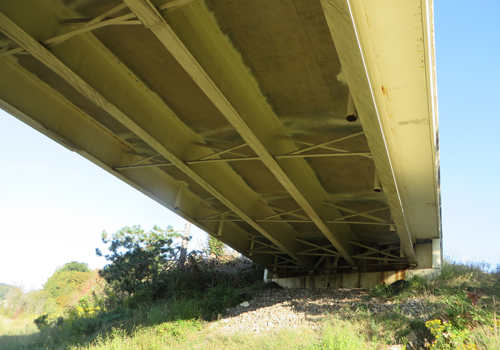

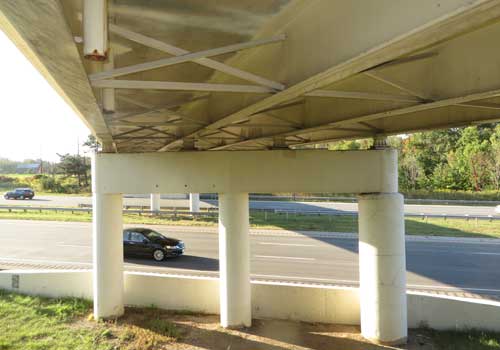

The bridge is a four-span continuous steel beam bridge with an overall length of 308 feet. The project will replace and widen the bridge deck from 24 feet to 32 feet. To accommodate the wider deck, the piers will be symmetrically widened and the abutments will be totally replaced with wider semi-integral type abutments.

KS Associates and ODOT District 3 evaluated and developed four alternatives to achieve the project goals. Engineering services included preparing plans, specifications, and estimates; structural analysis and load ratings; drainage design; surveying and Right-of-Way plans; Maintenance of Traffic (MOT) plans; and construction phase services. SR 302 will be detoured for the duration of construction.

The project is being implemented according to Path 2 of ODOT’s Project Development Process (PDP). Final design is complete.

Project Details

  • Location Jackson Township, Ohio
  • Market(s) Transportation
  • Owner Ohio Department of Transportation (ODOT) District 3

Services Provided

  • Bridge Design / Inspection
  • Highway Engineering
  • Land Surveying
  • Traffic Engineering
